New Ford Bronco Wildtrack Full Audio System Upgrade

August 12, 2022 By JOey Knapp

When this client approached us about upgrading the audio system in his new Ford Bronco Wildtrack, we were very excited! We love the new Broncos and have not had the opportunity to work on one yet. After putting together some options for the client, we settled on a design that would give him everything he wanted. The result was a system that would sound and look great.

Ford Bronco Amplifier Upgrade

A mounting plate was laser cut to give us a base for mounting the electronics.

It was a tight fit, but we managed to fit two amps and the integration piece on the board.

The two amps and processor were hidden behind the factory side panel.

The large screen of the Bronco served as the media source.

Powering the audio system upgrades would be two Rockford Fosgate amplifiers. A 4-channel amplifier would power the front and rear speakers, while a 500 watt mono amplifier would power the subwoofer. Integration with the factory audio signals is handled by a Wavtech processor. Based on the popularity of the new Bronco, we took the opportunity of having one in our bays to create some Bronco-specific mounting pieces. For mounting the electronics in this Bronco we make a CAD drawing of a mounting board that would fit the spot behind the rear quarter panel on the passenger side. We then cut that pattern out in 1/2″ plywood with our CNC laser. By carefully positioning the amplifiers we were able to mount not only them, but also the Wavtech processor.

Ford Bronco Speaker Upgrade

We laser cut an acrylic adapter plate for the tweeters.

The tweeters we added fit under the factory grilles.

It is rare to find a vehicle these days with kick-panel mounted speakers.

The factory speakers would not be able to handle the power of the new amplifiers, so they had to be replaced. We chose as are replacement for the front speakers, Kenwood XR components. These speakers are very efficient and will ensure the client has audible tunes, even with the roof off. We cut a custom acrylic plate on our CNC laser to adapt the tweeter to the factory speaker location. The woofer from the Kenwood component set was installed in the factory kick panel location. The client wanted to keep the rear pods factory-looking, so we simply replaced the speakers in the pods with a JL Audio coaxial speaker.

Subwoofer Upgrade for Ford Bronco

The enclosure base was test-fit on the door to check the mounting points.

Additional contouring was added to the enclosure.

The enclosure was primed with high-build primer so we could sand it smooth.

Strips of foam were added to the back of the enclosure to limit vibrations.

The client can open the tailgate with pride, knowing he has the great-looking enclosure bolted to it!

The woofer was sunk into the front baffle to help reduce the space it takes up in the storage area.

This acrylic beauty panel is removable to access one of the mounting bolts.

The enclosure was kept as thin as possible so the client could retain his storage space.

The final piece of the puzzle for this Bronco was adding some bass. The client wanted to retain as much usable space in the rear of the vehicle as possible, so we decided on an enclosure that mounts to the rear door. To make sure the enclosure would hold up to any of the elements this Bronco might see, we built it out of marine plywood. The enclosure was designed to be attached to the back door with 5 bolts. The bolts attach to the rear door with rivetnut inserts. This lets the enclosure be removed and reinstalled without affecting the attachment integrity.

To complement the stylish interior of the new Bronco we decided the enclosure would be upholstered in a black vinyl. In order to have the vinyl be nice and smooth requires a bit of work. Once the enclosure was constructed, we sprayed it with a high-build primer to fill in any voids in the wood. The enclosure was then sanded and any remaining imperfections were repaired. The acrylic beauty panel on the front of the enclosure not only looks great, but it also serves as a cover for one of the bolts that secure the enclosure. Strong magnets attach the panel to the enclosure and allow for removal if the enclosure ever needs to be unbolted.

Radical Audio Transformation

When we were done installing all the gear it was time to setup the processor and amplifiers. We made sure the levels were matched properly and that the crossovers were set on the amplifiers. After giving the vehicle a quick wipe down, it was time to return it to the owner. The owner was very happy with the upgrades and glad he would now be able to enjoy his music with the top on or off. Give us a call or contact us if you would like to learn more about options for your vehicle.

Ford Raptor Stereo System Upgrade

July 1, 2022 By JOey Knapp

The Ford Raptor is an awesome bit of engineering. Take one of the most popular Ford Trunks and pump it full of steroids and you have a Raptor! It is unfortunate, however, that the team at Ford didn’t design an audio system that was as awesome as the truck itself. Luckily, this is where Pinnacle Autosound comes in! A local client contacted us about upgrading her son’s Ford Raptor stereo system. She was very knowledgeable on mobile electronics, so it was a pleasure to work with her to design the perfect system for her son’s truck.

Speaker Upgrade

The front door speaker adapters were cut on our laser.

The speaker were installed behind the factory door panels.

The JL Audio C3 speaker was mounted as a coaxial speaker in the rear doors.

The client is a long-time fan of JL Audio, so we leaned heavily on that brand for this stereo system. For the front and rear doors, we used the JL Audio C3 speakers to form the foundation for great sound in this Raptor. The C3 speaker is unique in that it can be installed as either a component set or a coaxial speaker. This is fortunate for this Raptor, because we needed a component set for the front doors and a coaxial for the rear doors. The JL Audio C3 speakers were the perfect fit for each set of doors! To adapt the factory 5×7′ speaker to the JL Audio 6.5″ we used our laser to cut acrylic adapter plates. In the rear doors we used an aftermarket speaker adapter and topped it off with a bit of sound deadening material.

Amplifiers and Integration Processor Installation

We pre-wired much of the wiring on the amplifier mounting plate.

We carefully laid out the gear on the amp board to make sure they all fit.

We made a custom plate for the remote bass knob.

To power the speakers and subwoofers in the truck we used two different JL Audio amplifiers. The amplifiers and additional electronics were mounted to a custom board that we constructed to go behind the rear seats. The board mounts using factory mounting points on the back wall of the truck. Powering the speakers is an RD400/4 amplifier. The JL Audio RD amplifiers provide the client with incredible value and great sound. Providing the 1000 watts we needed for the subwoofers is a JL Audio JD1000/1 amplifier. This amp provides plenty of clean power in a small footprint chassis.
Because the client wanted to keep the factory source unit, we used a NAV-TV Zen interface to obtain a clean audio signal. The Zen interface takes the factory digital signal and provides a clean analog output that we used to feed signal to the amplifiers.
The final piece of electronics that are mounted to the board are the passive crossovers for the JL Audio C3 speakers. To make future servicing easier we custom lasered plastic labels to designate the front and rear, left and right crossovers. To give the client’s son complete control over the subwoofer amplifier, we mounted a JL Audio remote bass knob to the left of the steering wheel. We added a custom lasered labeling plate beneath the knob.

Custom Subwoofer Enclosure

The enclosure was loaded with the subwoofers and ready to be installed.

The enclosure lighting and speaker wiring was wired with a quick release plug, in case the enclosure needed to be removed.

The enclosure was finished with a combination of carpet, vinyl and acrylic trim pieces.

Laser-etched accent panels flank the center Raptor logo.

The laser etched piece of acrylic was also lit with LED RGB lighting.

The Raptor logo was lit and accent lighting was added at the bottom of the enclosure.

Bass for this system is a pair of JL Audio 10Tw3 subwoofers. These are some of JL Audio’s best “thin” subwoofers. We have used many of these subwoofers over the years to fit in the tight spaces that modern trucks present us with. In addition to being a shallow-mount subwoofers, these winners also take very little airspace for their enclosure. A home run for trucks! The client didn’t want just a plain carpeted enclosure for her son, and that was music to our ears! We used a combination of laser cut acrylic pieces and LED lighting to really set this enclosure apart.

Ford Raptor Stereo Upgrade Success

As with all our installations, after the equipment was installed and the vehicle cleaned, we set the controls on the amplifiers to maximize the output of the stereo system. This truck was designed to sound incredible, and it didn’t disappoint. The client loved the way the truck sounded, and enjoyed the impressive amount of bass it had, she couldn’t wait to share it with her son. We have worked on hundreds of trucks, so we know how to make them sound great. If you have a truck and are interested in upgrading the sound in it, stop by or contact us online.

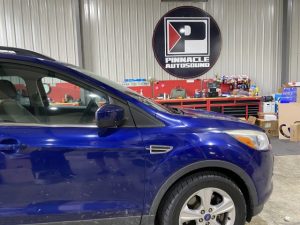

Ford Edge Car Stereo Upgrade for Lake City Client

May 22, 2022 By JOey Knapp

A longtime friend of Pinnacle Autosound decided he needed to upgrade the car stereo system in his Ford Edge. After a brief discussion on the phone, the client stopped by so we could get a better look at his vehicle. Looking at the vehicle, and talking with the client, we came up with a plan for satisfying his audio desires.

Morel Speakers and Rockford Amplifier

The rear doors were upgraded with Morel coaxials.

The front woofers were replaced with Tempo Ultra speakers.

The interior retained its stock look when we were done.

Our adapter plates mounted the tweeters in the factory location.

These plastic adapters were heat formed to fit the tweeters.

The first step in the stereo upgrade for the Ford Edge was to replace the factory speakers. The speakers that came in this Edge were lifeless and sounded even worse when cranked up. Our discussion with the client led us to the direction of Morel speakers. The Morel speakers are a natural choice for those that musically oriented, like this client. We have found that the Morel speakers are very natural sounding and require very little equalization to provide balanced sound. We used Morel Tempo Ultra components in the front and Morel Tempo Ultra coaxial speakers in the rear doors. To mount the tweeters in the factory location, we used our laser to cut some custom ABS plastic mouting adapters. Powering the speakers is a four channel Rockford Fosgate R2 amplifiers. This amplifier packs plenty of power in a small footprint.

Rockford Fosgate Bass

We placed the remote level control for the subwoofer within easy reach of the driver.

The custom lasered plate trims out the bass knob.

The Punch subwoofer offered quite a bit of bass in a small enclosure.

The client wanted a fair amount of bass, but also wanted the option to retain all his hatch space. Given these parameters, we chose the Rockford Fosgate Punch 12″ powered subwoofer enclosure. This awesome setup contains a 12″ subwoofer with a 300 watt amplifier, in a sealed enclosure. Both the power and signal wires into the enclosure are connected with quick release plugs. These make it easy for the client to remove the enclosure, should he ever need every bit of space in his hatch. The enclosure comes with a remote level control. We once again used our laser to make a custom trim plate for the knob.

Great Sounding Car Stereo Upgrade

With all the gear installed, it was time for us to setup the system. We adjusted the levels on the system interface and then the amplifier and powered subwoofer. The result was a great sounding system that exhibited wonderfully balanced tonality and awesome detail. The client loved the upgrade and couldn’t wait to listen to his favorite music in it. If you are interested in turning your vehicle into a rolling concert, give us a call or contact us here.

Premium Stereo Upgrade for Lake City Ford F-250 Pickup Truck

June 11, 2021 By JOey Knapp

A previous client from here in Lake City brought his 2015 Ford F-250 pickup truck to Pinnacle Autosound for a stereo system upgrade. We’d worked on the client’s boat in the past, and he was very happy with the enhancements we installed. He wanted the stereo in the Ford to play louder, sound clearer and, of course, deliver much better bass response. After inspecting the vehicle and talking to the client about his listening preferences, our team put together a premium audio upgrade that would deliver on all his expectations.

Ford F-250 Pickup Truck Stereo Upgrade

We used our laser to cut the ABS adapters for the Morel tweeters to mount in the factory location.

The rear doors got upgraded with the Morel coaxials.

The speaker adapter plates were reinforced with sound deadener.

The Morel Virtus speakers were a huge upgrade over the stock speakers.

The front doors were retained their great stock look, but sound much better.

We started the project by removing the stock speakers to make way for new drivers from Morel. Our team used a set of ABS plastic adapters to mount the 6.5-inch woofers from a Virtus 602 component set in the OE speaker location in the front doors. The adapters are lined with sound deadening to make them more rigid. We mounted the tweeters from the Virtus 602 set in the stock locations at the top of the sail panels, and we made ABS brackets to hold the tweeters in place behind the grilles.

For rear speakers, we used a set of Morel Tempo Ultra Integra 602 two-way coaxial speakers in the doors. While the door trim panels were off, we treated the inner and outer door skins with sound deadening to make the interior of the vehicle quieter.

JL Audio Subwoofers Add Impact and Warmth

Our Thunder Laser was used to create the acrylic trim plate.

LED lighting and chrome trim was used to accent the bottom of the enclosure.

Different layers of trim were used to accent the front of the enclosure

We were able to squeeze all of the electronics on the back wall.

The next step in upgrading the stereo in this pickup truck was to construct a custom enclosure for a pair of 13.5-inch JL Audio 13TW5 subwoofers. The enclosure fits under the rear seats with the subs pointed down at the floor. We added a custom trim piece to the face of the enclosure with a panel that bears Ford’s Platinum logo. We used our CNC laser to etch the logo into a sheet of cast acrylic. The trim is wrapped in gray vinyl, and the rest of the enclosure is finished in a gray carpet that matches the interior of the vehicle. Blue LED lighting under the enclosure and behind the accent piece gives the whole thing some extra style.

The subwoofers are powered by a JL Audio RD1000/1 monoblock amplifier that’s mounted to the back wall of the truck. A four-channel Morel MPS 4.400 amplifier that’s mounted beside the sub amp provides power for the front and rear speakers. The amplifiers, passive crossovers for the front speakers and the system’s signal processor are affixed to a carpeted panel to keep things tidy.

We used a PAC AmpPRO interface to connect the new audio equipment to the factory radio. This interface extracts the audio signal that’s normally fed to the factory-installed amplifier and provides a full-bandwidth, processing-free signal that we used to upgrade the sound system in this truck. The preamp outputs of the PAC interface are connected to a JL Audio TwK-88 digital signal processor.

Signal Processing Improves Car Audio System Accuracy

The TwK-88 processor handles frequency filtering for the sub and speakers in the truck. We also used it to equalize the output of each speaker to deliver a smooth and natural response that’s free from peaks and valleys. Finally, we set the signal delays and output level adjustments so that the system would create a very realistic soundstage that spans the width of the dash.

We upgraded the TwK-88 with a JL DRC-205 remote level control, which we mounted on the dash to the left of the steering column. We created a trim ring for the remote with our computer-controlled laser to identify the functions of the adjustments.

North Florida’s Best Car Audio Upgrades

With the audio system installation complete and the processor and level controls on the amplifiers dialed-in, it was time for the client to return to pick up his F-250. He was thrilled with the sound of the upgraded stereo in his truck and loved that everything was integrated so nicely.

If you are interested in upgrading the audio system in your vehicle, drop by Pinnacle Autosound in Lake City and speak with one of our Product Specialists. If you can’t come by the store, give us a call or send us an email using our online contact form.

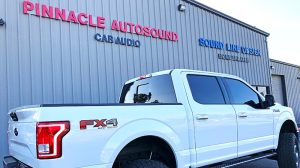

Macclenny Client Comes to Pinnacle for Ford F-150 Audio Upgrade

October 25, 2018 By JOey Knapp Leave a Comment

A long-time client of ours recently referred one of his co-workers to us. When the client stopped by, we talked with him about his Ford F-150 audio system and the changes he wanted to make. He previously had an audio system installed by another shop and wasn’t happy with the performance of the system. We gave the client a few different options and price points, highlighting the improvements for each step. We were thrilled when the client decided to go with the best of our proposals.

F-150 Audio Integration

The client had the factory radio in his truck and was happy with how it worked and the aesthetics of the unit. We advised him that with the help of a JL Audio FiX 86 processor he could utilize the factory radio as his source unit. The JL Audio processor removes and time delay and flattens out the response of the factory radio. This gives us a perfectly clean signal to start with, much like if he used an aftermarket radio. We were able to easily find the factory wire colors using our Mitchell1 software subscription.

A Second JL Audio Processor

In-between the time we had the client scheduled to drop his F-150 off and his initial deposit he asked about any additional audio upgrades that were possible for his system. We felt comfortable that we had maximized his budget for the speakers, amplifiers and subwoofers. The one thing we didn’t originally quote him for, however, was a DSP (digital signal processor). We feel that any amplified system can benefit from a DSP. In a system like the one we were building for the client the DSP would allow us to run the front speakers fully active, meaning each speaker would have its own amplifier channel. This gives us much more flexibility in adjusting the sound and let’s us digitally compensate for the different locations of the speakers in the truck.

Since we were already using a JL Audio integration processor, it made perfect sense to go to JL Audio for the DSP as well. We used the JL AudioTwK 88. A benefit of the TwK processor is that it allows the use of the JL Audio DRC-200. The DRC-200 is dual knob control that allows the client to adjust the subwoofer level and system volume from one convenient spot.

JL Audio Amplifiers

One of the goals of this F-150 audio upgrade was increased clarity and volume. That means power, and lots of it. Because we would be mounting the amplifiers behind the rear seat, we needed amps with a small footprint. Consequently, the JL Audio xD amplifiers were the perfect choice. The speakers in the truck would be powered by a XD600/6v2. We configured the amplifier to provide the tweeters and woofers in the front of the truck with 75 watts to each driver. The rear doors were powered by the remaining two channels of 75 watts per side. The subwoofer system was to be comprised of 4 10″ subwoofers. To make sure they had the recommended power we chose a XD1000/1v2. This amp would give each subwoofer the rated 250 watts.

Front Speaker Upgrade

The Focal tweeters were mounted in the factory spot and black soundproofing was used to seal them to the opening.

The installed tweeters retained a factory look.

The factory pillars already had trick-looking grilles that were perfect for our tweeter upgrade.

The front doors were treated with sound deadening material to reduce resonances.

The Focal speakers in the front were installed with custom-fabricated adapter plates.

The Focal speakers were a huge upgrade.

In keeping with the client’s wishes, the doors remained stock-looking.

The front speaker upgrade consisted of the Focal PS165v1 component speakers. These speakers were chosen for their realistic audio reproduction and fit in the F-150 doors. The small size of the tweeter allowed our technicians to install them in the factory location in the pillar. The 6.5″ woofer was installed in the door location. A custom composite adapter plate was fabricated to adapt the round speaker to the factory 6×9″ speaker hole. To reduce any resonances in the doors plenty of sound deadener was used. The final step before installing the door cards back on the truck was to add a set of foam rings around the woofers. These rings help the output of the woofer couple to the cabin of the truck and prevent any sound from being trapped between the door card and the door.

Rear Speaker Upgrade

The wiring for the rear speakers was soldered and neatly secured.

The rear speakers were installed with foam rings to maximize their output.

The upgrades to the rear doors left them looking stock but sounding much better.

The rear doors received a bit more simple upgrade from the front. In the rear we installed a set of Focal Performance 6.5″ coaxial speakers. These speakers are the same series as the front speakers, so we knew they would tonally blend. Similarly, we used the same methods to install the rear speakers as we did the front. Again, the final step was the addition of the foam rings to help seal the speakers.

Subwoofer Upgrade

Braces were added to the enclosure to enhance its rigidity.

A thin layer of body filler was used to smooth the transitions on the enclosure.

1/4′ dowels were used to center and secure the vinyl insert.

The openings on the top plate were cut so the JL Audio woofers would sit flush.

The enclosure gave the client the most possible bass under his rear seat.

Careful measurements were taken to ensure the enclosure fit the underseat area properly.

The previous F-150 subwoofer system the client had installed was lacking in musicality and didn’t quite have as much audio output as he wanted. One of the key parts of this F-150 audio system was the bass upgrade. After taking some careful measurements under the rear seat we came up with a plan for maximizing the bass output within his budget. Our plan was to use 4 JL Audio 10TW1 subwoofers in a custom-fabricated sealed enclosure. The enclosure was built with three braces, equally spaced, to help reduce any bass loss due to panel flexing.

To help make this system look as good as we knew it would sound we added a bit of extra detail to the cosmetics of the enclosure. The corners of the enclosure were formed to precisely follow the contours of the edge of the seat. To keep the enclosure looking good for years to come, the outer edge was covered in black carpet. For a custom look we fabricated a vinyl covered insert for the top of the enclosure. This insert helps to flush in the woofers as well as giving the overall enclosure a cleaner look.

Final Tuning and Delivery

We used a digital laser measuring device to determine the distance to each speaker.

The final overall response curve of the system met our target goals.

With all the gear installed it was time to setup the integration processor and tune the DSP. We started the process by calibrating the JL Audio FiX 88. Once the signal was clean it was time to adjust the sensitivity controls on the amplifiers.

With the sensitivity controls properly adjusted we moved on to the DSP settings. We provided the client with 2 different tunes for the system. The two tunes can be selected by pressing the center knob on the DRC-200. The first tune was a sound quality tune optimized for the driver’s seat. For this tune we set the crossover points, signal delay and individual equalizers for each speaker. The result was an audio experience that placed all the soundstage up on the dash and presented the listener with accurately placed instruments and artists across the dashboard. The second tune was for when the client would be driving with other passengers in the truck. For this tune the crossovers were set and global equalizer adjustments were made. This tune ensured each seat in the truck shared a similar listening experience.

After all the work was done we finally got to listen to the F-150 audio upgrades. They sounded fantastic! We were overjoyed when delivering the truck to the client because we knew how pleased he would be with his new audio system. Thanks to our improvements, the client’s drive to work every day will be much more enjoyable.
If you are interested in an audio upgrade for your vehicle, stop by Pinnacle Autosound, contact us online or call us today!
